R15 S Features

Sree Gokulam Motors

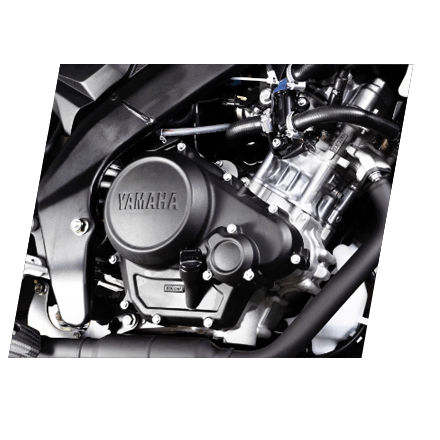

155 CC LC 4V SOHC FI Engine

Sree Gokulam Motors

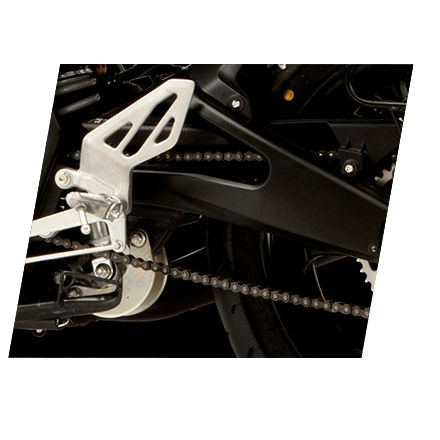

Aluminium Swing Arm

Sree Gokulam Motors

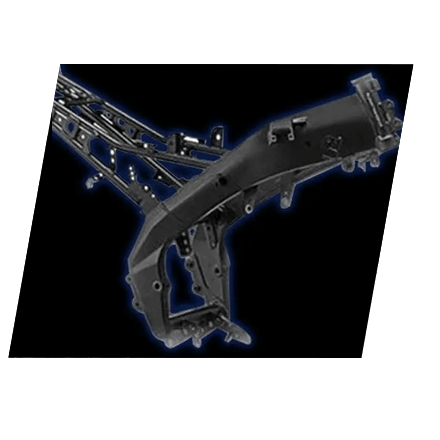

Deltabox Frame

Sree Gokulam Motors

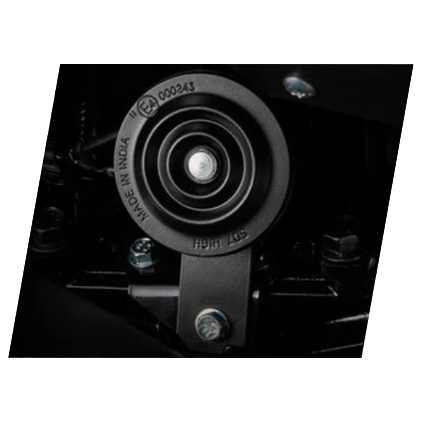

Dual Horn

Sree Gokulam Motors

E20 Fuel Comaptible

Sree Gokulam Motors

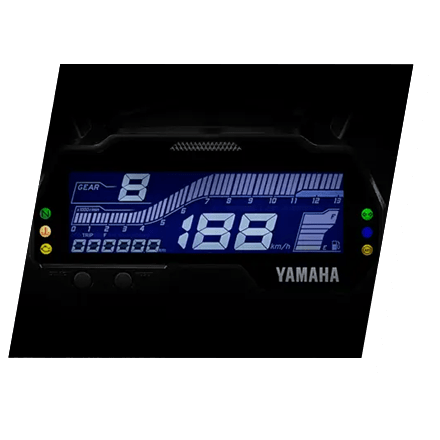

Negative LCD Instrument Cluster

Sree Gokulam Motors

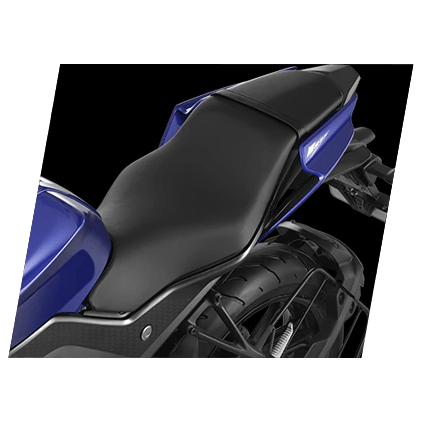

Unibody Seat

Specifications

Sree Gokulam Motors

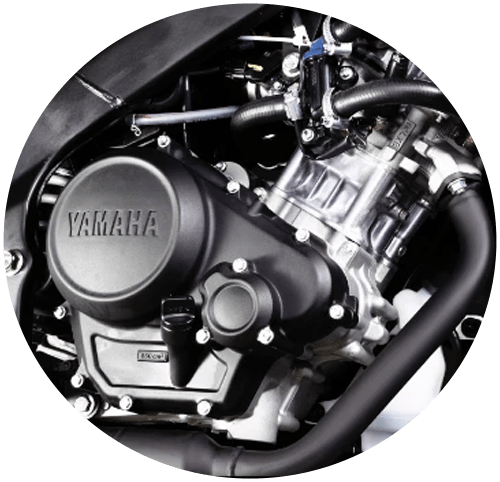

Engine type

Liquid-cooled, 4-stroke, SOHC, 4-valve

Displacement

155 CC

Bore & stroke

58.0 mm × 58.7 mm

Compression ratio

11.6 : 1

Maximum horse power

13.5kW(18.4PS)/10000 RPM

E20 Compatible

Yes

Starting system type

Electric starter

Transmission type

Constant mesh, 6-speed

Clutch type

Wet, multiple-disc

Fuel system

Fuel injection

Maximum torque

14.2 Nm (1.4 kgfm) @7,500 RPM

Sree Gokulam Motors

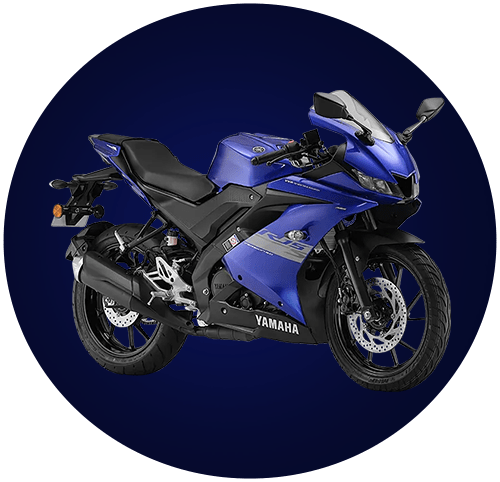

Overall Length

1,990 mm

Overall Width

725 mm

Overall Height

1,135 mm

Seat height

815 mm

Wheel base

1,325 mm

Minimum ground clearance

170 mm

Kerb Weight (with oil & a full fuel tank)

142 kg

Fuel tank capacity

11 L

Sree Gokulam Motors

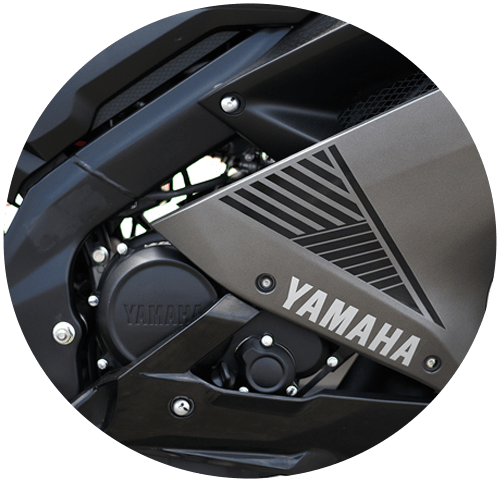

Frame type

Deltabox

Front suspension system

Telescopic Fork

Rear suspension system

Monocross (link suspension)

Brake type (Front)

Disc brake (282 mm)

Brake type (Rear)

Disc brake (220 mm)

Tyre size (front)

100/80-17M/C 52P - Tubeless

Tyre size (rear)

140/70R17M/C 66H - Radial Tubeless

Inner tube (diameter of front fork)

41.0 mm

Sree Gokulam Motors

Battery

12V, 4.0Ah

Headlight

LED

Auxiliary light

LED

Brake/tail light

LED

Speedometer

Digital

Tachometer

Digital

Fuel meter

Digital

ABS

Dual Channel ABS

Side stand engine cut-off switch

Equipped

Dual horn

Equipped

Gear position indicator

Equipped

Fuel consumption indicator

Equipped

Shift timing light

Equipped

VVA indicator

Equipped

Clock

Digital,auto adjust with smartphone connectivity

VVA

Equipped

Traction control system

Equipped
