FZ FI Features

Sree Gokulam Motors

E20 Fuel Compatible

Sree Gokulam Motors

Light Weight Body

Sree Gokulam Motors

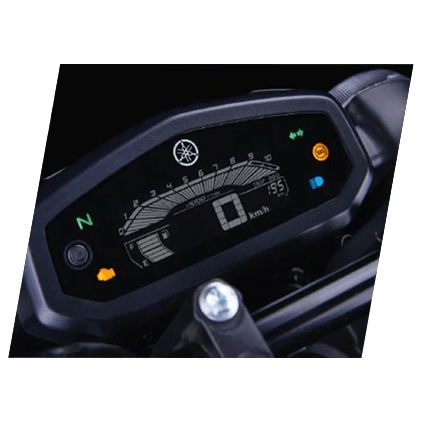

Negative LCD Instrument Cluster

Sree Gokulam Motors

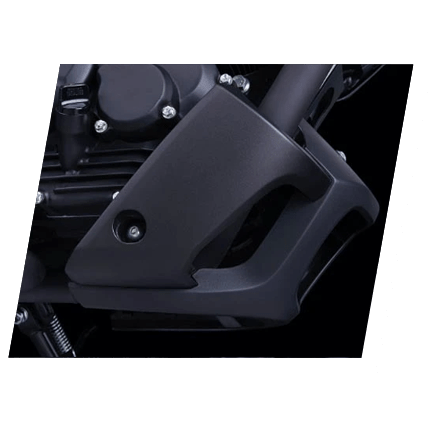

Under Cowl

Specifications

Sree Gokulam Motors

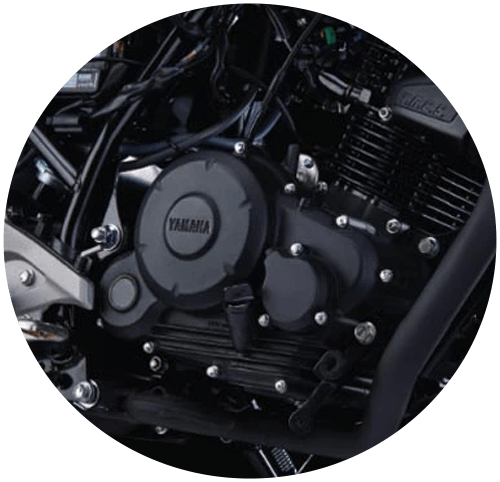

Engine Type

Air cooled, 4-stroke, SOHC, 2-valve

Displacement

149 cc

Bore & stroke

57.3 mm x 57.9 mm

Compression ratio

9.6 : 1

Maximum horse power

9.1 kW (12.4PS) / 7,250 r/min

Maximum torque

13.3 N.m (1.4 kg f.m) / 5,500 r/min

Starting system type

Electric Starter

Lubrication system

Wet sump

Sree Gokulam Motors

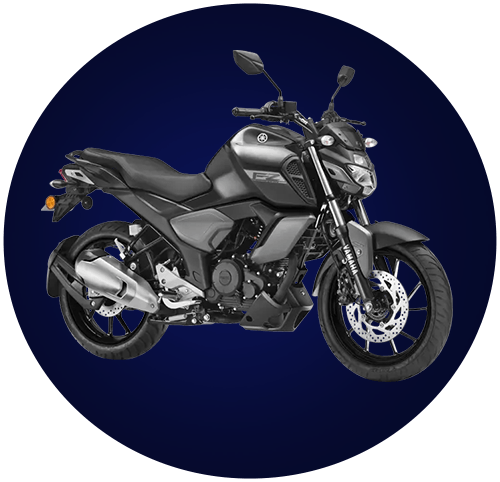

Overall Length X Width X Height

1,990mm X 780mm X 1,080mm

Seat height

790 mm

Wheelbase

1,330 mm

Minimum ground clearance

165 mm

Kerb Weight

135 kg

Sree Gokulam Motors

Tubeless tyre size (Front)

100/80-17M/C 52P

Tubeless tyre size (Rear)

140/60R17M/C 63P

Brake type (Front)

Disc Brake(282mm)

Brake type (Rear)

Disc brake (220 mm)

Sree Gokulam Motors

Fuel tank capacity

13 L

Clutch type

Wet, multi-disc

Transmission type

Constant mesh, 5-speed

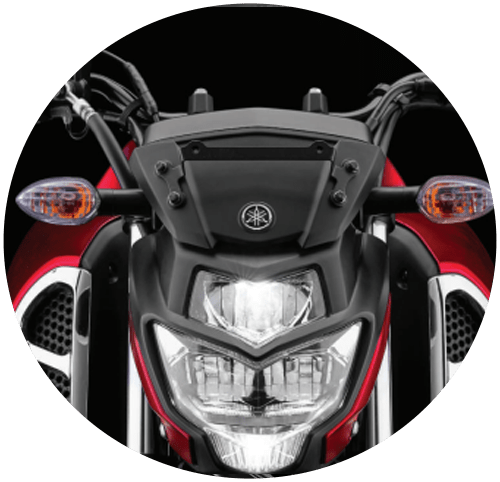

Headlight

LED

Suspension type (front/rear)

Telescopic fork / 7-Step Adjustable Monocross Suspension

Brake/ Tail light

12V,21/5W x 1

Clock

Digital

Speedometer

Digital

Battery

12V

ECO indicator

Equipped

Carburetor type/ Fuel supply

Fuel injection
